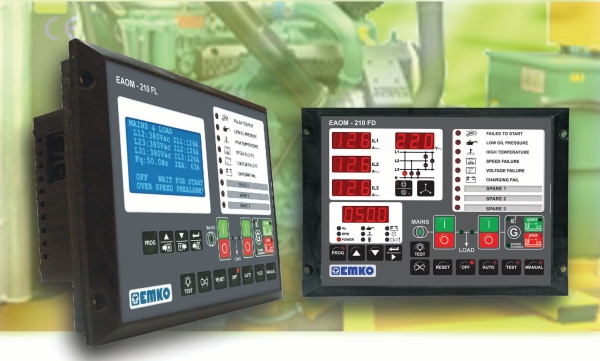

Enhanced Automatic Gen-set Transfer Switching Controllers Comparison Table
|
Automatic engine start/stop and load transfer |
+ |
+ |
+ |
+ |
|
Manual, Automatic and Test Mode control |
+ |
+ |
+ |
+ |
|
User
configurable inputs |
6 |
6 |
6 |
6 |
|
Optional expansion board with user configurable 8 inputs |
+ |
+ |
- |
- |
|
User
configurable outputs |
4 |
2 |
4 |
2 |
|
Optional expansion board with user configurable 8 outputs |
+ |
+ |
- |
- |
|
3 resistive
sender inputs |
+ |
+ |
+ |
+ |
|
3 phase
current measurement |
+ |
+ |
+ |
+ |
|
Earth
current measurement |
+ |
- |
+ |
- |
|
Speed sensing from alternator voltage |
+ |
+ |
+ |
+ |
|
Speed sensing from magnetic pickup |
+ |
- |
+ |
+ |
|
Exercise at programmed time intervals |
+ |
+ |
+ |
+ |
|
RS-232, Modbus ASCII Serial communication |
+ |
+ |
+ |
+ |
|
Available for Remote using by PC software |
+ |
+ |
+ |
+ |
|
Standard
modem communication |
+ |
+ |
+ |
+ |
|
Power measuring by kVA, kW, kVAh, kWh, kVAr, kWrh |
+ |
+ |
+ |
+ |
|
Logging
last 32 events |
+ |
+ |
+ |
+ |
|
Display |
LCD |
LCD |
LED |
LED |
|
Mains
contactor outputs |
Open Close |
Open |
Open Close |
Open |
|
Generator
contactor outputs |
+ |
+ |
+ |
+ |
|
Programmable weekly working permit calendar |
+ |
+ |
+ |
+ |
|
Maintenance warning (working hour or elapsed month) |
+ |
+ |
+ |
+ |
|
Flat type,
144x204x37mm size |
+ |
+ |
+ |
+ |
Features
Protection Control and Metering
Automatic Engine Start Stop and Load Start Switching
Automatic Shutdown on Fault Conditions
OFF/Manual/Automatic and Test Mode Control
User configurable Inputs and Outputs
Analogue-Resistive Sender Inputs for Fuel Level, Oil Pressure and Engine
Temperature
Speed Sensing for Alternator Voltage or Magnetic Pickup
Exercise and Maintenance Warning
RS-232 Communication MODBUS RTU Protocol
PC Communication Software for Programming and monitoring
Mains and Generator Voltage, Current, Frequency Measurement
