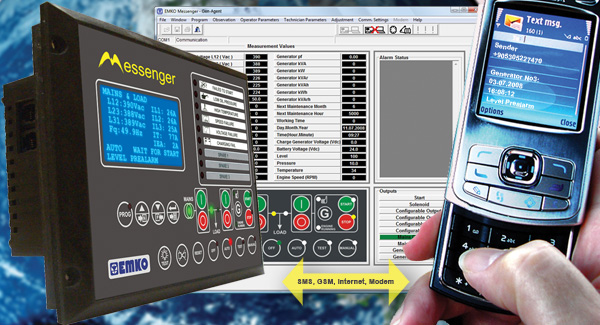

Remote Management Automatic Gen-Set Protection & Controllers with
Transfer Switching
- Sends SMS to pre-defined GSM numbers for
alarms
- Controls the generator and monitors status
information of the generator by SMS
- Remote Control via internet,
intranet, GSM or dial-up modem
- Access to multiple generators by Gen-Agent
SCADA software
- Authorised access, secure communication
- Suitable for telecommunication projects
- Automatic transfer switching control and
engine control
- Logs last 32 events & Alarm informations
- Full metering facility, energy and power
measurement
|
Enhanced
automatic Gen-set Controller with transfer switching, SMS communication by
build-in internal GSM Modem and configuration software |
Two-way SMS
Communication (GenSet to Mobile) |
|
|
Enhanced
automatic Gen-set Controller with transfer switching, Build in Ethernet &
Dial-up modem communication, multiple Gen-set visualisation & control by
Gen-Agent SCADA software |
Remote control
& visualisation for multiple Gen-sets |
|
Features
3 phase mains and 3 phase generator
voltage measurement,
3 phase load current and earth current measurement,
Contactor open and close relay outputs for mains and generator,
Configurable 6 inputs and 4 outputs,
3 resistive sender inputs for oil pressure, temperature and level,
Stop or fuel selenoid selection,
Programmable weekly working permit calendar,
Maintenance warning (working hour or elapsed month),
Exercise at programmed time intervals,
OFF, Manual, Auto and Test mode,
Power measurement by kVA, kW, kVAr, kVAh, kWh, kVArh,
Compatible to Diesel or Gas generators
